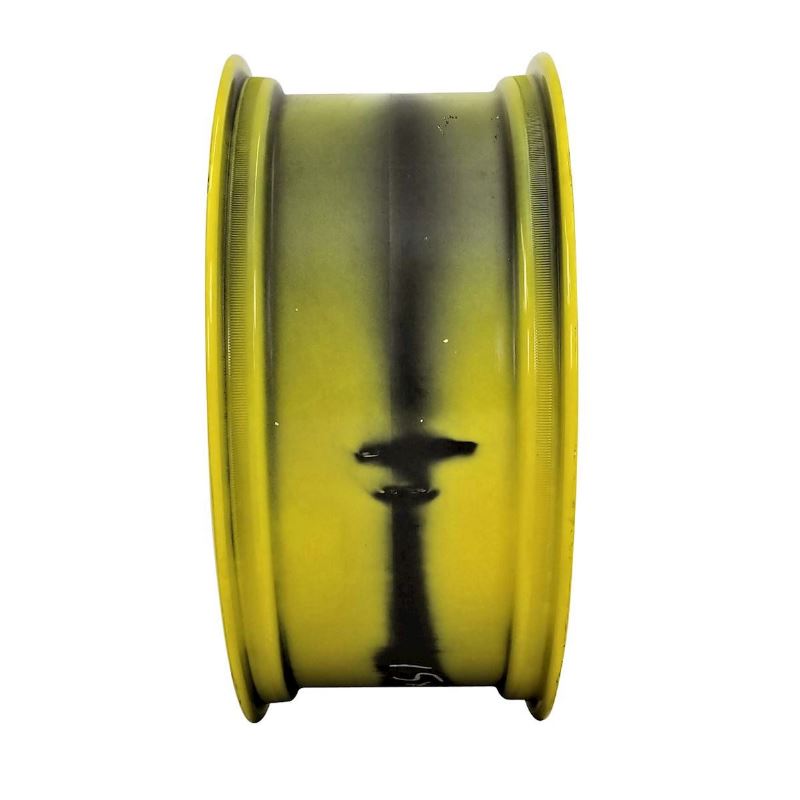

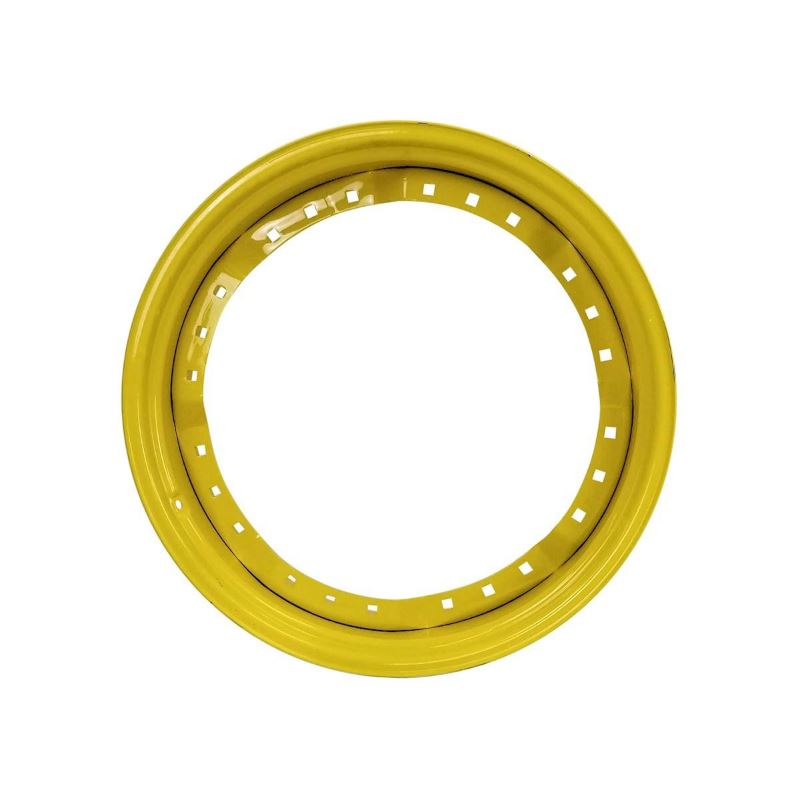

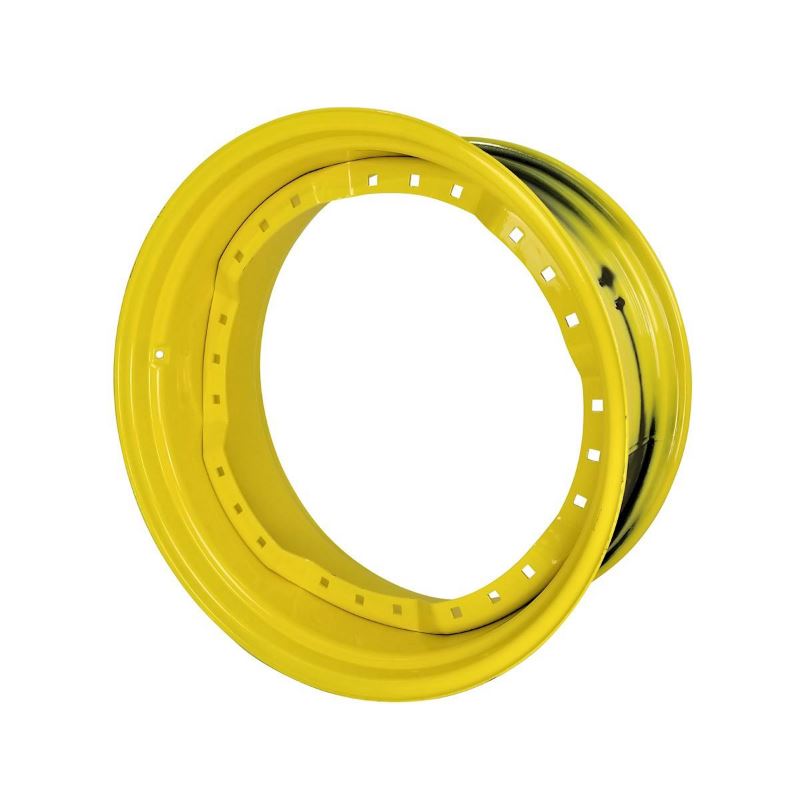

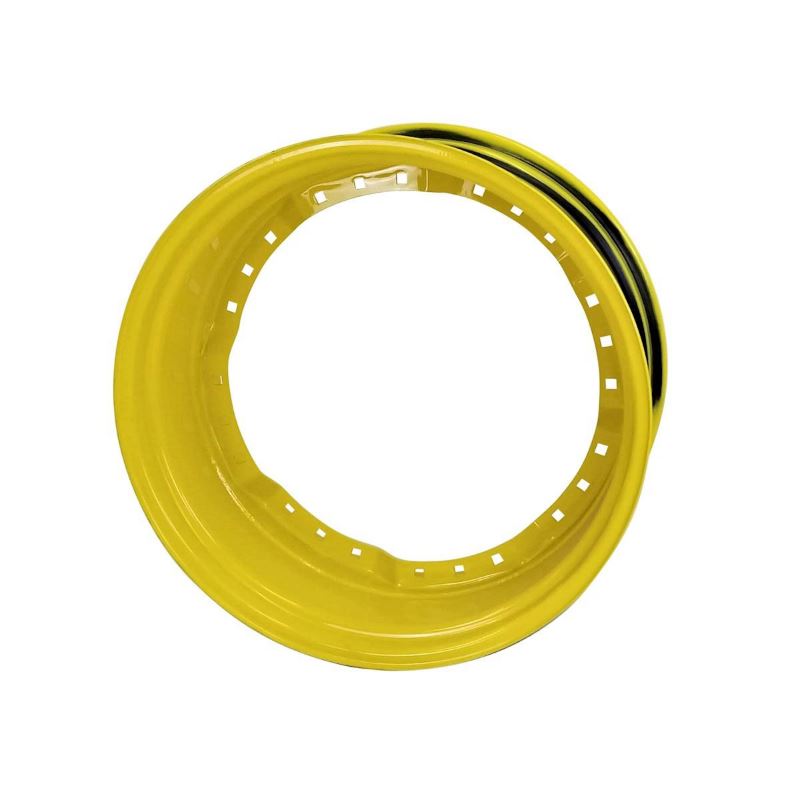

15x34 Waffle Wheel - JD Yellow

  • Fits John Deere tractor models 6170R, 6175R, 6190R, 6195R, 7260R, 7270R, 7280R, 7290R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8335R, 8345R, 8360R, 8370R, 6320, 6330, 6400, 6405, 6410, 6415, 6420, 7720, 7820, 7920, 8120, 8220, 8320, 8420, 8520
  • Powder coated finish
  • Made in the USA

See list of compatible tire sizes below

SKU: 24-340150-JY

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement wheel, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 34"
Rim Width 15"
Bolt Circle 29-1/4"
Bolt Hole Size 11/16" SQ
Backside Measurement 9-3/8"
Frontside Measurement 5-1/4"
Condition New
Color JD Yellow
Number of Bolt Holes 4 groups of 3
Approximate Weight 132 lbs.
Rim Thickness .187"
Center Style Waffle

Tire Sizes

Width Aspect Ratio Wheel Diameter
16.9 34
16.9 R 34
18.4 R 34
18.4 34
420 85R 34
480 85R 34
480 80R 34
480 70R 34
