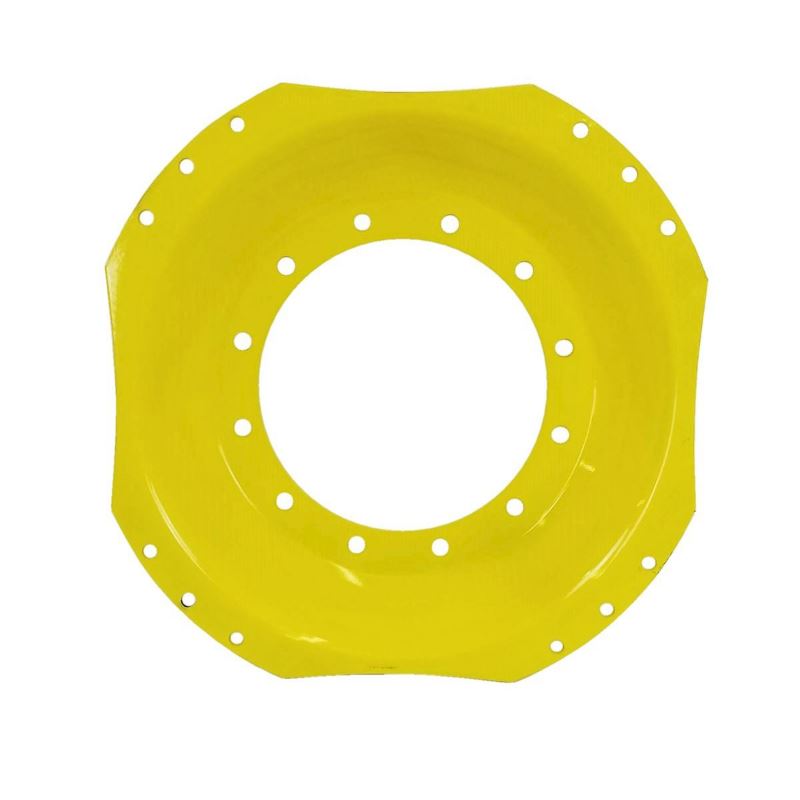

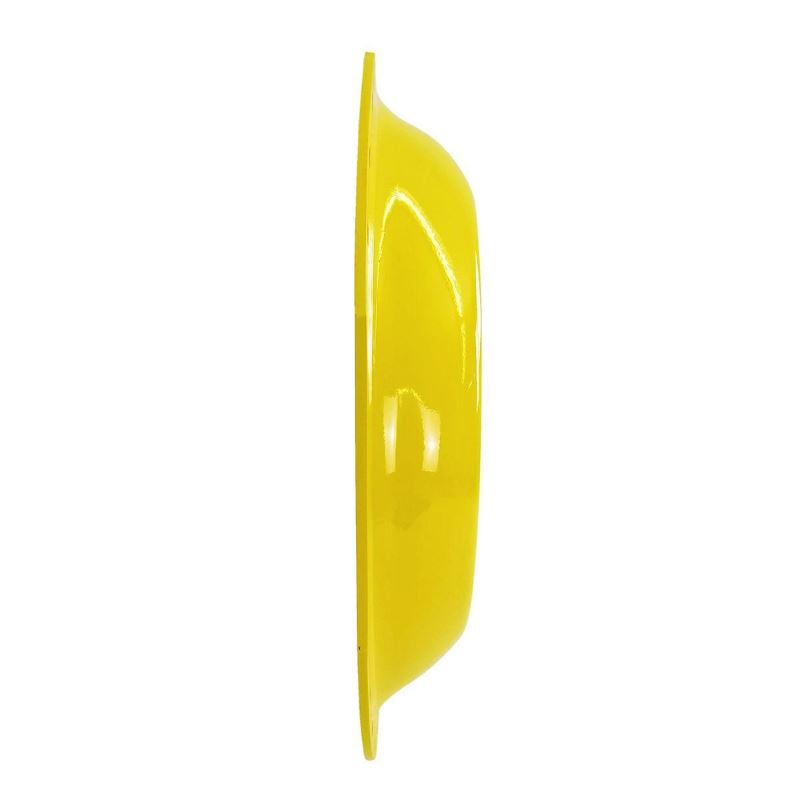

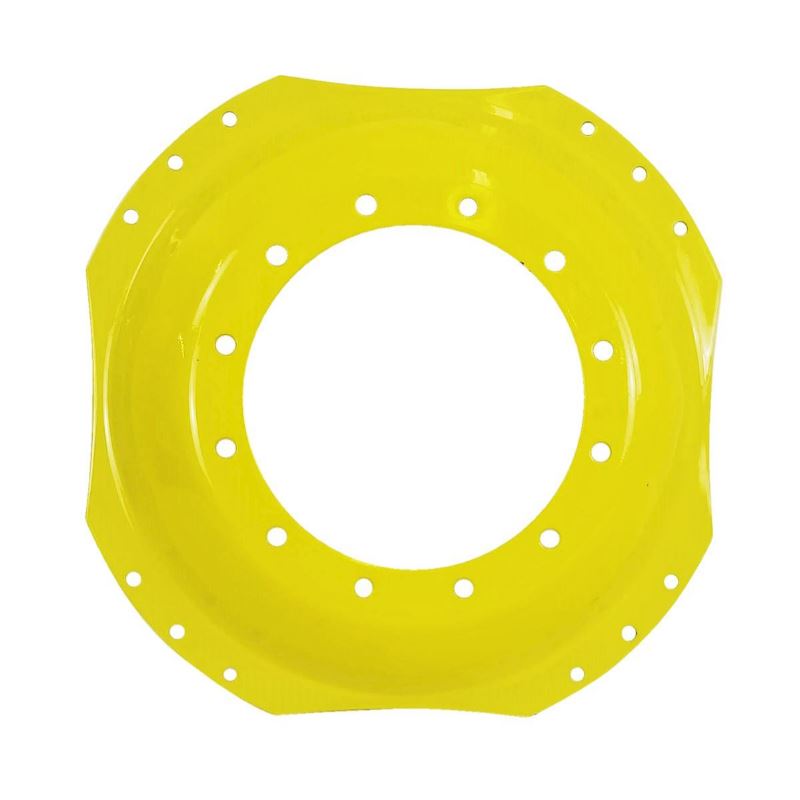

12 Hole Front Wheel Assist - 34" Waffle Center Disc - JD Yellow

  • Fits John Deere tractor models 8100, 8110, 8120, 8200, 8210, 8230, 8300, 8320, 8330, 8400, 8410, 8420, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R
  • Powder coated finish
  • Made in the USA

SKU: 20-3481254-JY

Quantity Pricing


In Stock


Add to Cart

Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 34"
Pilot Hole 14-5/8"
Condition New
Color JD Yellow
Inner # Bolt Holes 12
Inner Bolt Circle 16-3/4"
Inner Bolt Hole Size 7/8"
Offset Measurement 4"
Outer # Bolt Holes 4 groups of 3 holes
Outer Bolt Circle 29-1/4"
Outer Bolt Hole Size 11/16"
Approximate Weight 68 lbs.
Outer Bolt to Bolt Measurement 3" 6"
Countersink No
Center Style 3/8" Formed
