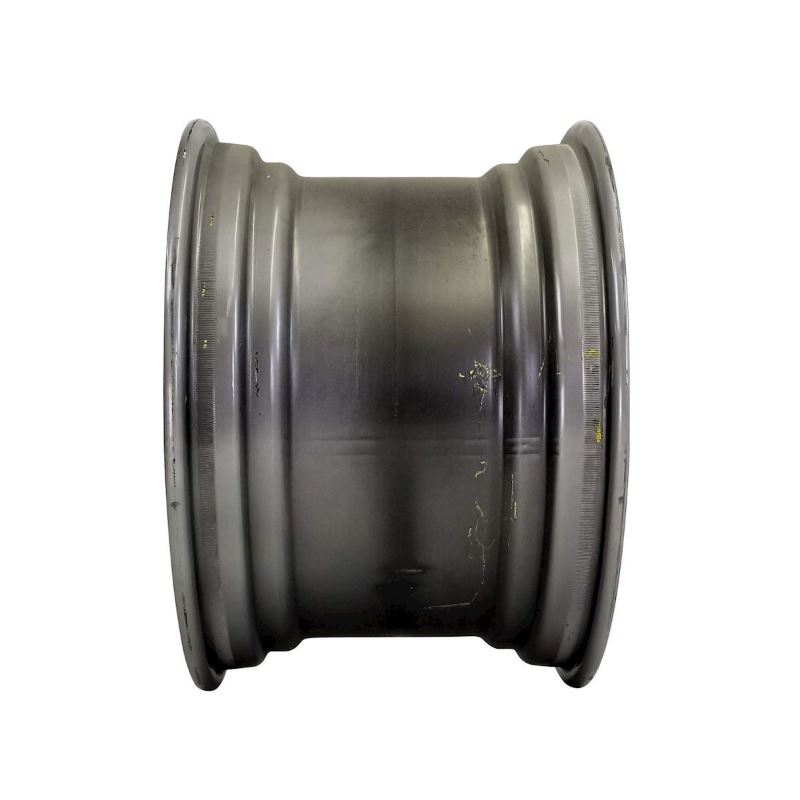

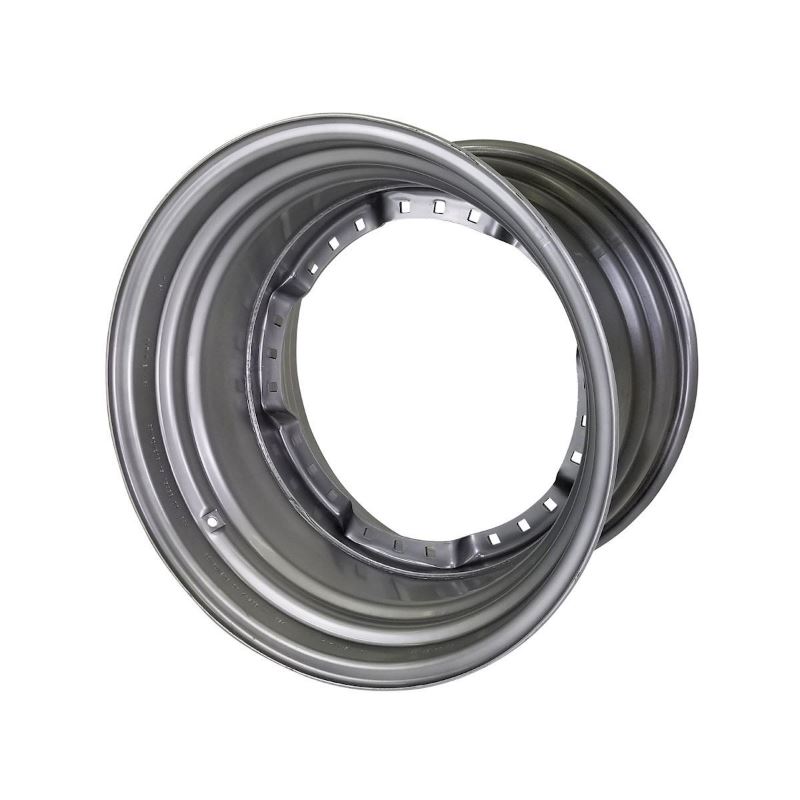

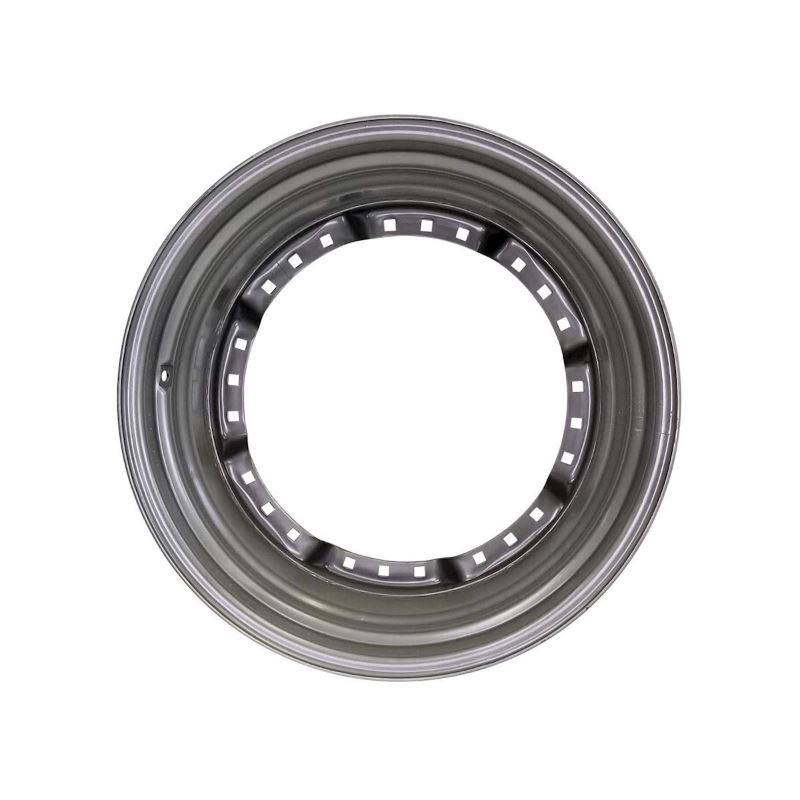

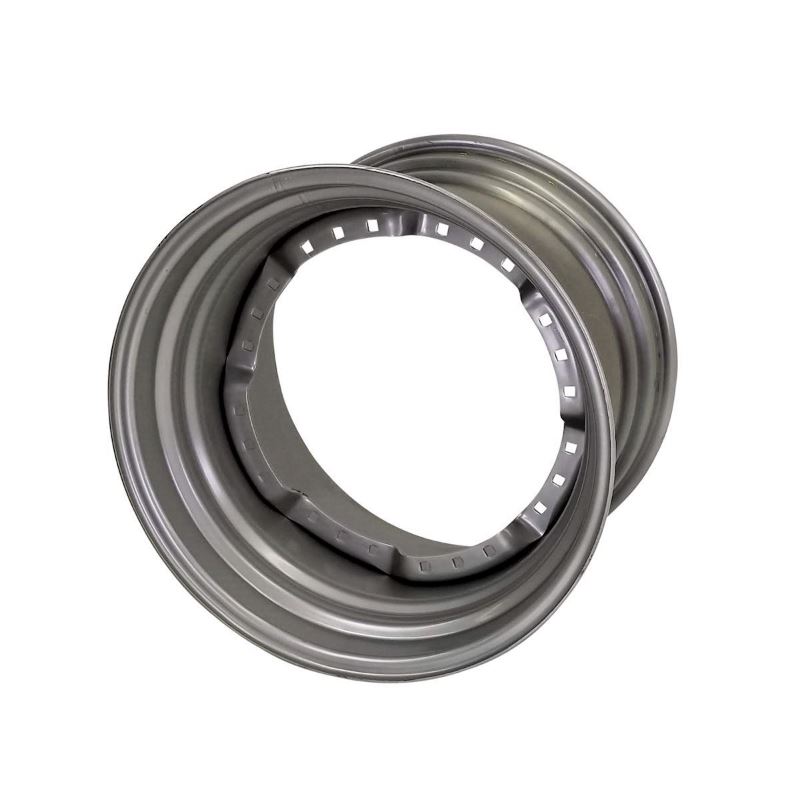

20x30 Waffle Wheel - Silver Mist

  • Fits Case IH tractor models 8920, 8930, 8940, 8950, MX210, MX215, MX220, MX230, MX245, MX255, MX270, MX275, MX285, MX305, MAGNUM Series 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 380, 3154
  • Powder coated finish
  • Made in the USA

See list of compatible tire sizes below

SKU: 24-300200-SM

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement wheel, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 30"
Rim Width 20"
Bolt Circle 23-1/4"
Bolt Hole Size 11/16" SQ
Backside Measurement 8"
Frontside Measurement 12-1/8"
Condition New
Color Silver Mist
Number of Bolt Holes 4 groups of 3
Approximate Weight 153 lbs.
Center Style Waffle
Rim Thickness .224"

Tire Sizes

Width Aspect Ratio Wheel Diameter
23.1 30
23.1 R 30
600 70R 30
620 75R 30
