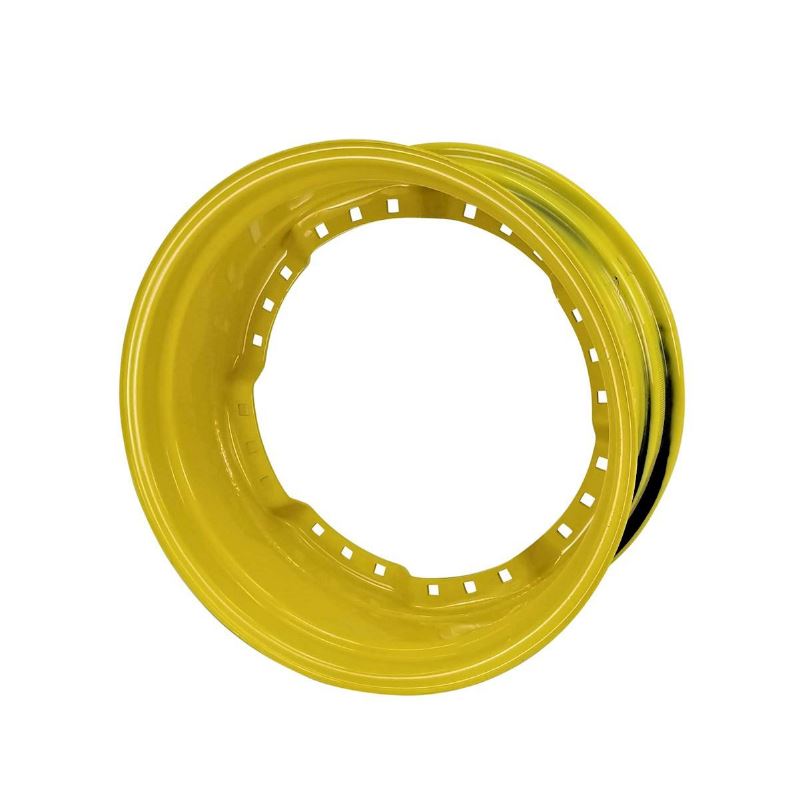

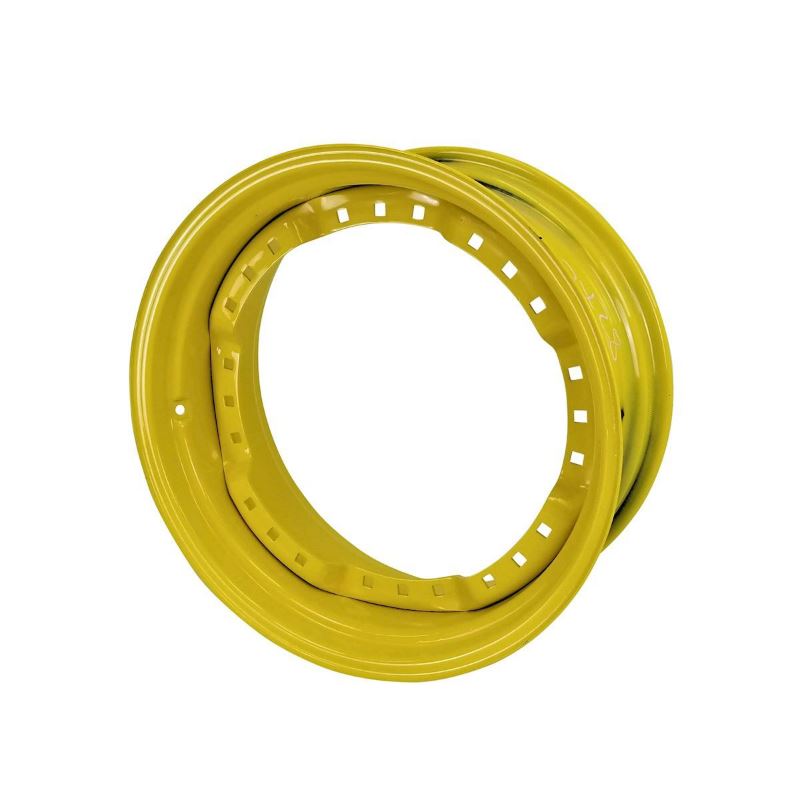

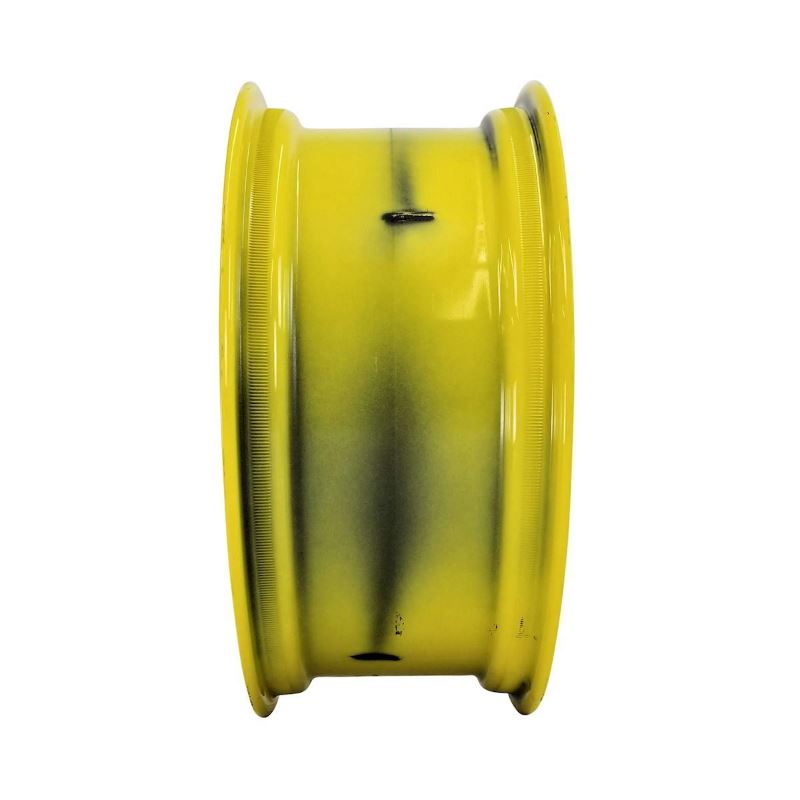

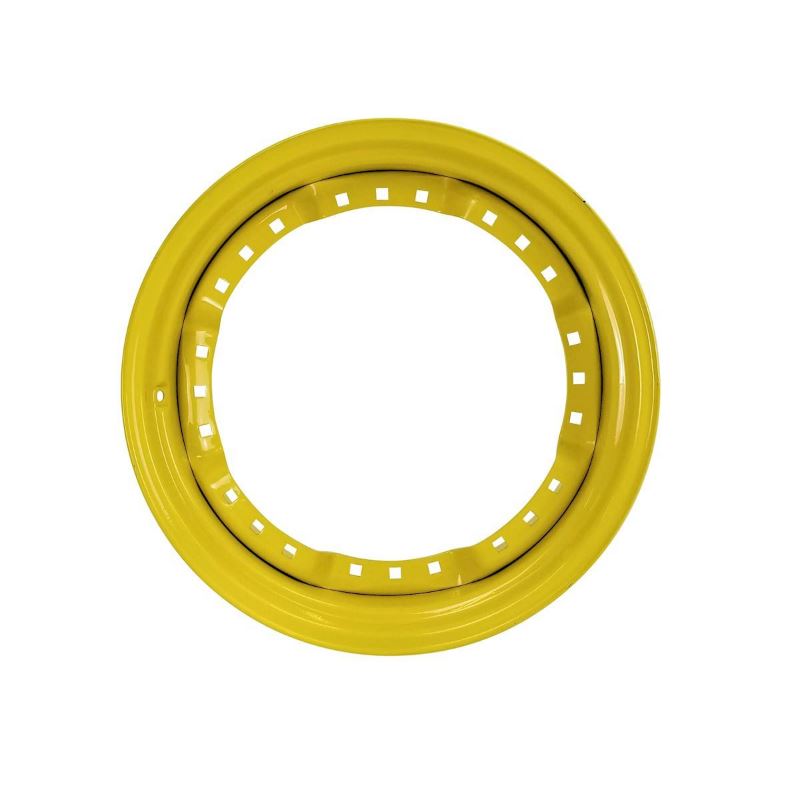

12x28 Waffle Wheel - JD Yellow

  • Fits John Deere tractor models 4560, 4760, 4960, 7200, 7210, 7220, 7230, 7320, 7330, 7400, 7405, 7410, 7420, 7430, 7510, 7520, 7600, 7610, 7700, 7710, 7800, 7810
  • Fits Tractor Front John Deere models 6415, 6420, 6430, 6520
  • Powder coated finish
  • Made in the USA

Search by equipment to see specific models

See list of compatible tire sizes below

SKU: 24-280120-JY

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement wheel, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 28"
Rim Width 12"
Bolt Circle 23-1/4"
Bolt Hole Size 11/16" SQ
Backside Measurement 7-3/4"
Frontside Measurement 3-3/4"
Condition New
Color JD Yellow
Number of Bolt Holes 4 groups of 3
Approximate Weight 88 lbs.
Rim Thickness .171"
Center Style Waffle

Tire Sizes

Width Aspect Ratio Wheel Diameter
13.6 28
13.6 R 28
14.9 R 28
14.9 28
380 70R 28
380 85R 28
420 85R 28
