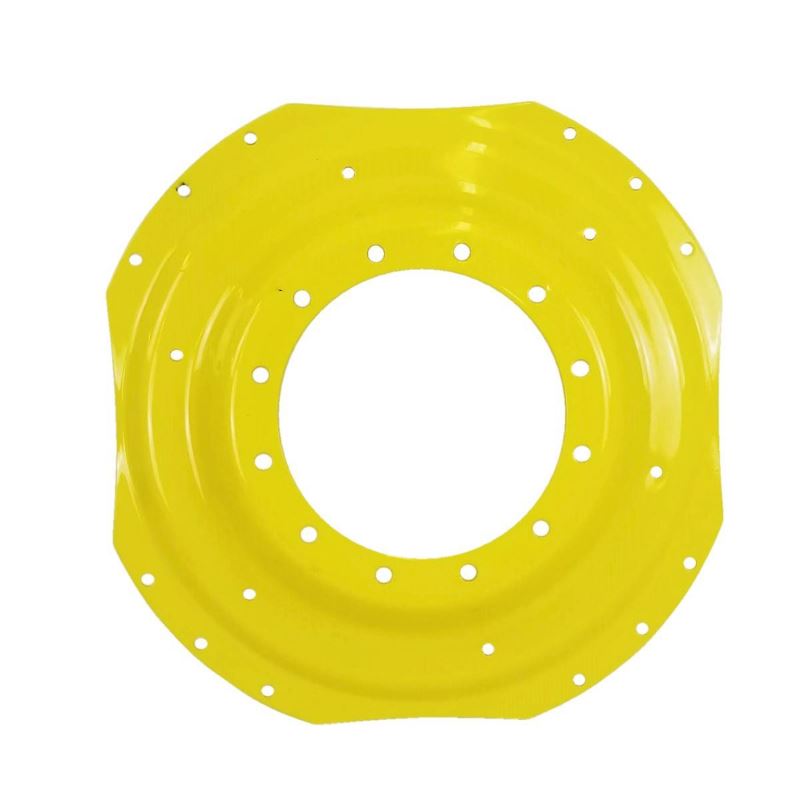

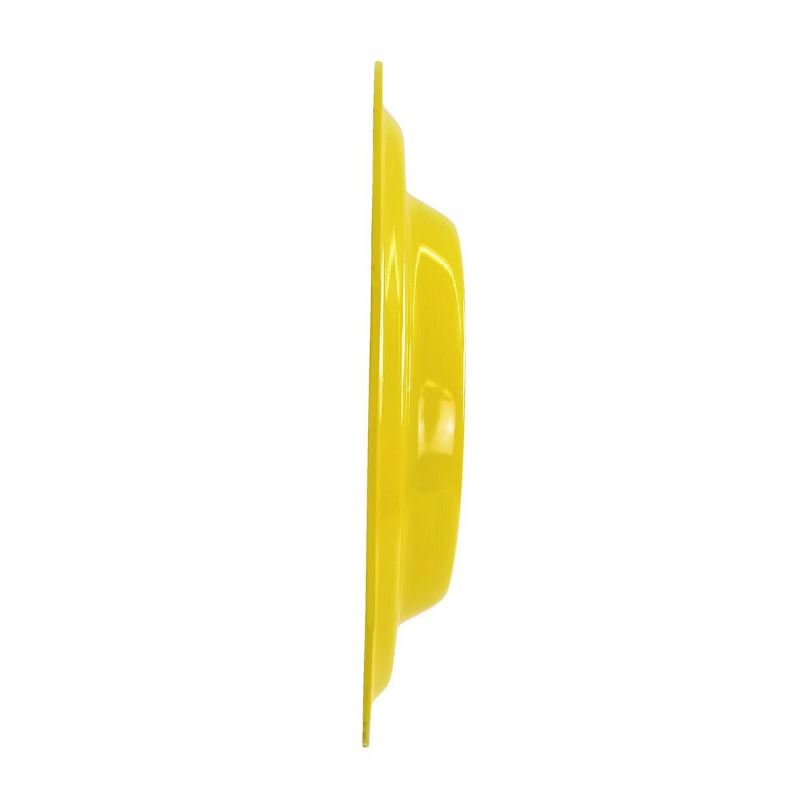

12 Hole Front Wheel Assist - 38" Waffle Center Disc - JD Yellow

  • Powder coated finish
  • Made in the USA

SKU: 20-3881254-JY

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping

Estimate only. Rate to be determined on final checkout screen.

ALASKA and HAWAII Residents - Please contact us for a freight quote prior to purchase. Call 641-450-7090 or submit an inquiry through our Custom Inquiry Form.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 38"
Bolt Circle 16.75" (16-3/4")
Condition New
Color JD Yellow
Number of Bolt Holes 12
Approximate Weight 88 lbs.
Outer Bolt to Bolt Measurement 4-3/8" 8-5/8"
Countersink No
Center Style 3/8" Formed
Bolt Hole Size 0.875" (7/8")
Offset Measurement 4"
Outer # of Bolt Holes 4 Groups of 3 Holes
Outer Bolt Circle 33.25" (33-1/4")
Pilot Hole 14.625" (14-5/8")
