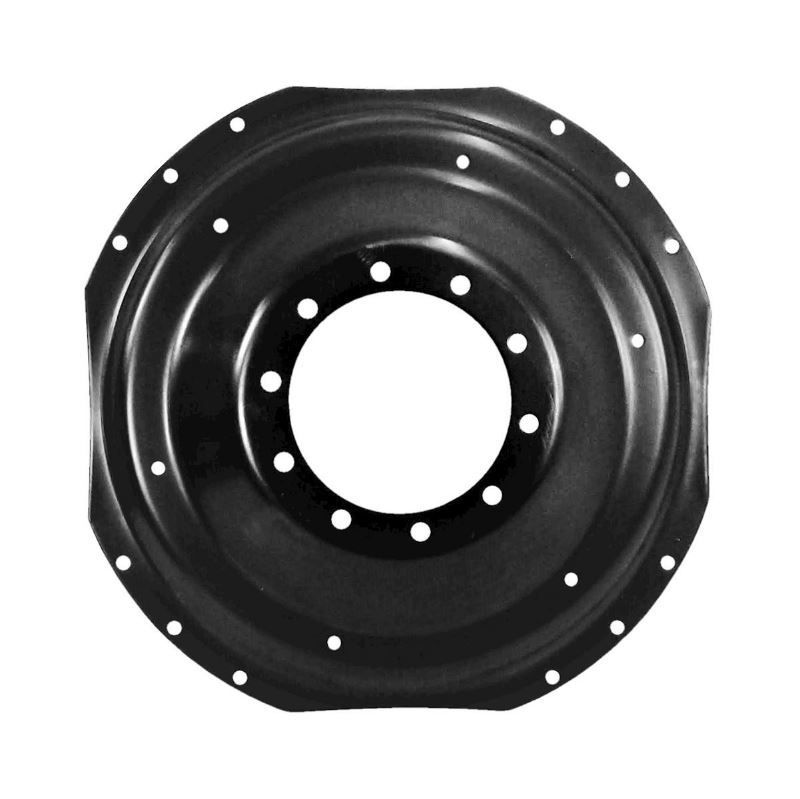

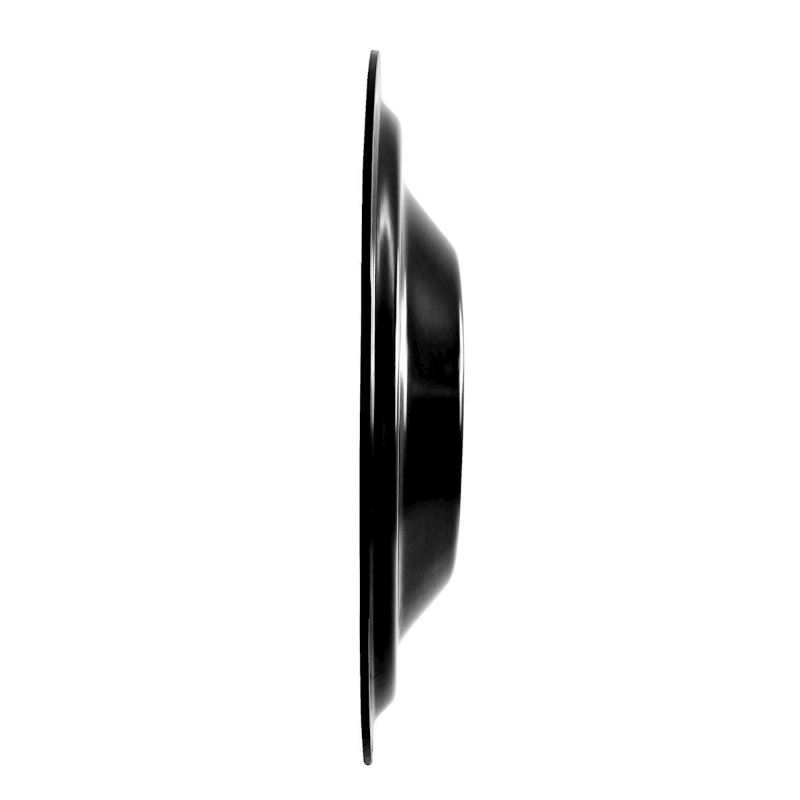

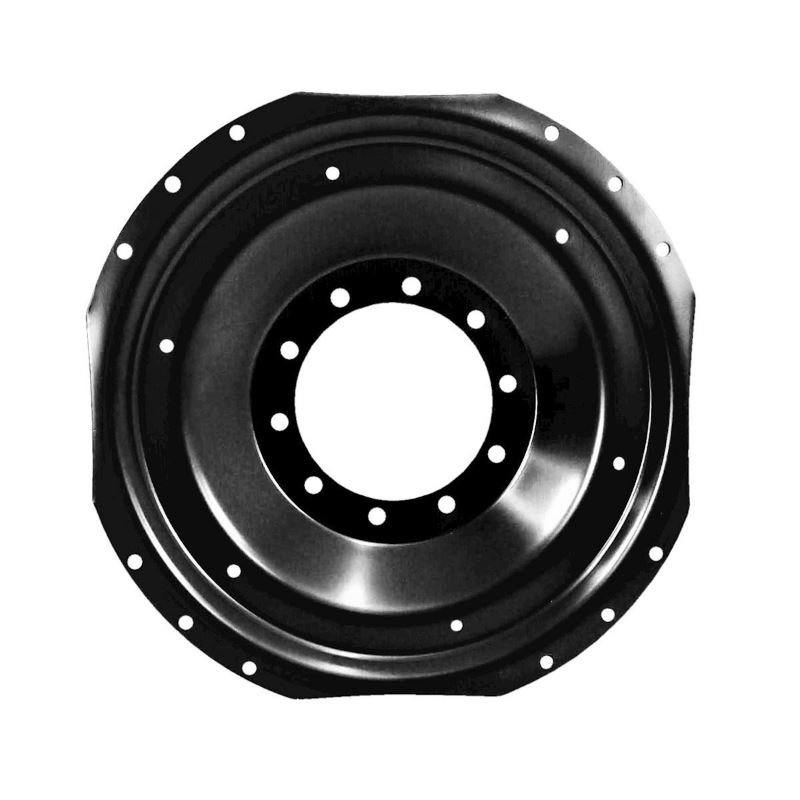

10 Hole Front Wheel Assist - 38" Waffle Center Disc - Flat Black

  • Fits Case IH tractor models Magnum180, Magnum190, Magnum210, Magnum215, Magnum225, Magnum245,  MX180, MX200, MX210, MX215, MX220, MX230, MX245, MX25, MX285
  • Powder coated finish
  • Made in the USA

See list of compatible tire sizes below

SKU: 20-3881054-FB

Quantity Pricing


In Stock


Add to Cart

Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 38"
Pilot Hole 11"
Condition New
Color Flat Black
Inner # Bolt Holes 10
Inner Bolt Circle 13-3/16"
Inner Bolt Hole Size 7/8"
Offset Measurement 4"
Outer # Bolt Holes 4 groups of 3 holes
Outer Bolt Circle 33-1/4"
Outer Bolt Hole Size 11/16"
Approximate Weight 93 lbs.
Countersink No
Outer Bolt to Bolt Measurement 4-3/8" 8-5/8"
Center Style 3/8" Formed
