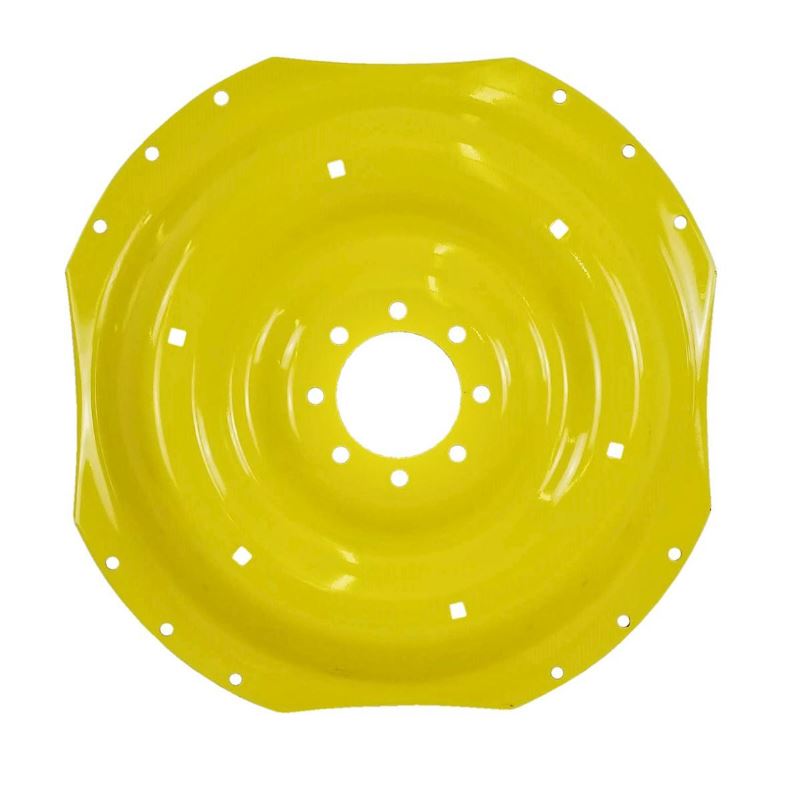

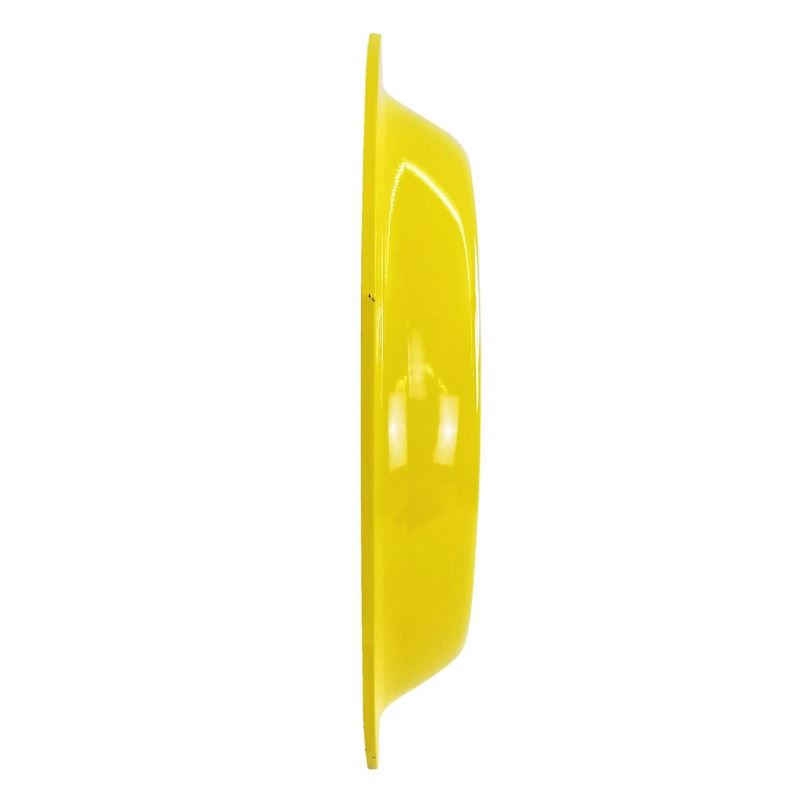

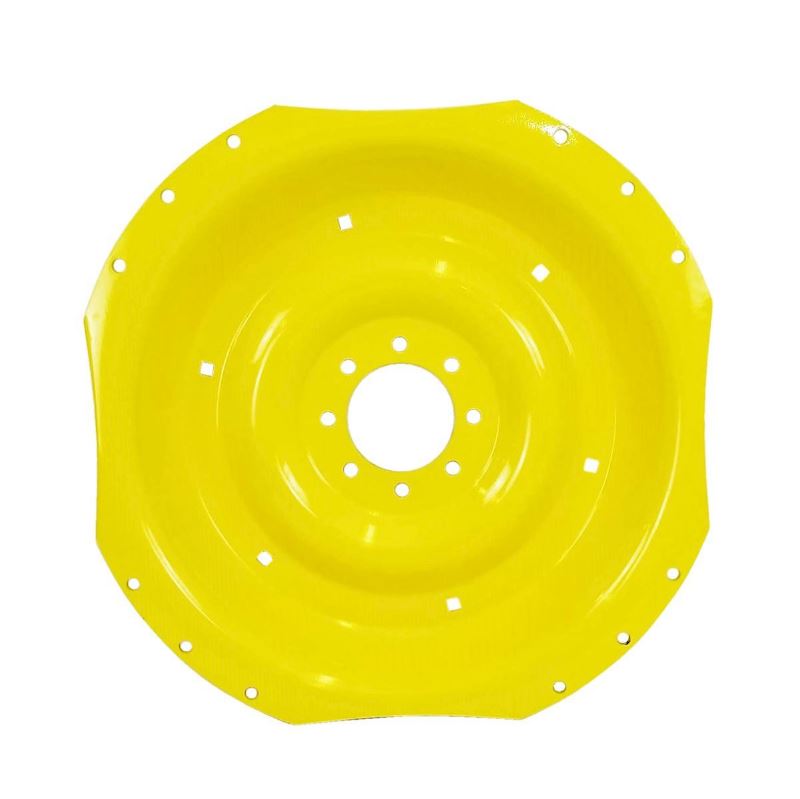

8 Hole Ag (27/32" Hole) 38" Heavy Duty Waffle Center Disc - JD Yellow

  • Powder coated finish
  • Made in the USA

SKU: 20-3880834-JY

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 38"
Pilot Hole 6"
Condition New
Color JD Yellow
Inner # Bolt Holes 8
Inner Bolt Circle 8"
Inner Bolt Hole Size 27/32"
Offset Measurement 4"
Outer # Bolt Holes 4 groups of 3 holes
Outer Bolt Circle 33-1/4"
Outer Bolt Hole Size 11/16"
Approximate Weight 145 lbs.
Approximate Weight No
Outer Bolt to Bolt Measurement 4-3/8" 8-5/8"
Center Style 1/2" Formed
