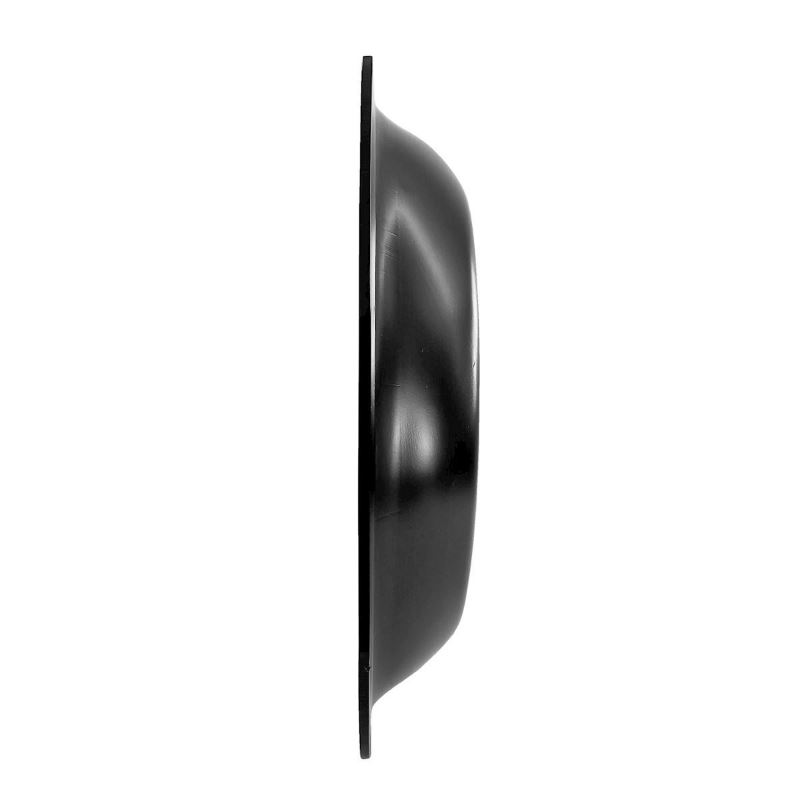

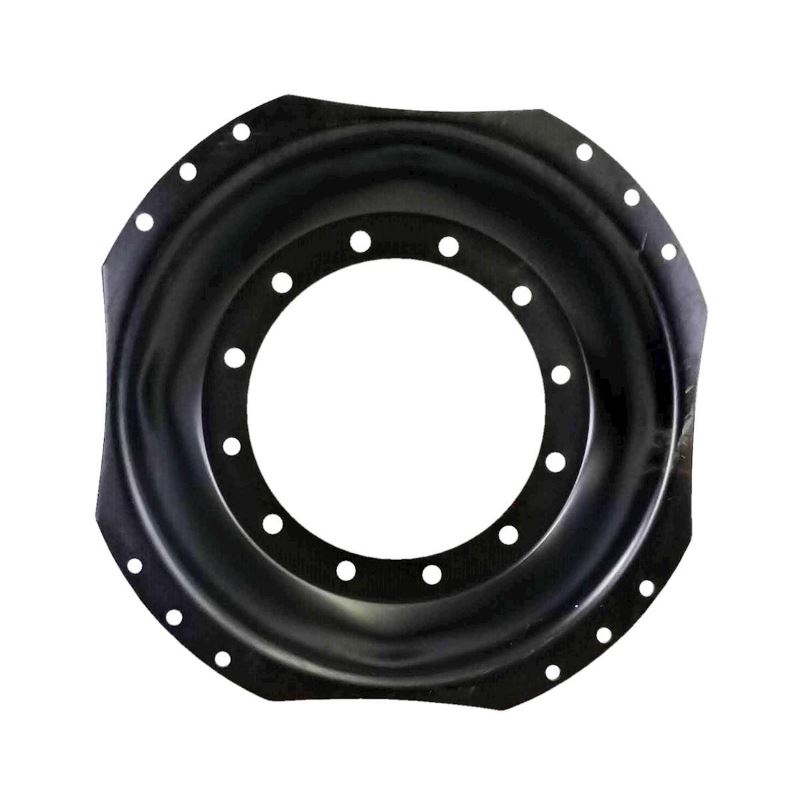

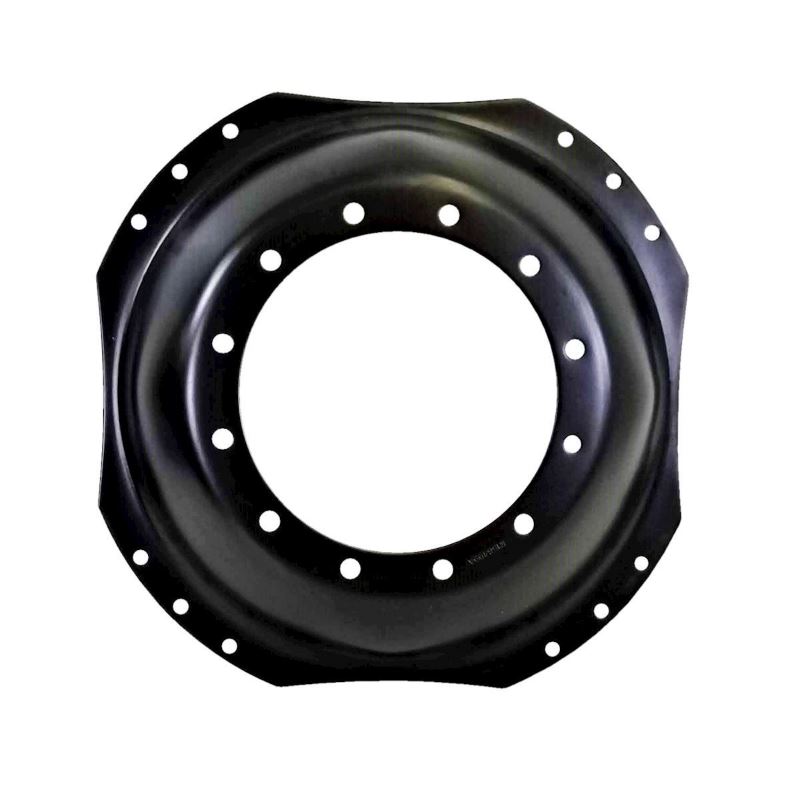

12 Hole Front Wheel Assist - 34" Waffle Center Disc - Flat Black

  • Fits Case IH tractor models MX210, MX215, MX230, MX240, MX245, MX255, MX270, MX275, MX285, MX305
  • Fits Case IH MAGNUM tractor models 180, 190, 200, 210, 215, 220, 225, 235, 240, 245, 250, 260, 275, 280, 290, 305, 310, 315, 335, 340, 380, 3154
  • Powder coated finish
  • Made in the USA

See list of compatible tire sizes below

SKU: 20-3481254-FB

Quantity Pricing


In Stock


Add to Cart

Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 34"
Pilot Hole 14-5/8"
Condition New
Color Flat Black
Inner # Bolt Holes 12
Inner Bolt Circle 16-3/4"
Inner Bolt Hole Size 7/8"
Offset Measurement 4"
Outer # Bolt Holes 4 groups of 3 holes
Outer Bolt Circle 29-1/4"
Outer Bolt Hole Size 11/16"
Approximate Weight 68 lbs.
Outer Bolt to Bolt Measurement 3" 6"
Countersink No
Center Style 3/8" Formed
