Ag wheels made easy
QuickSearch

If your equipment isn't listed call 1-641-450-7090 or complete our custom inquiry form so we can help you find the wheel you need.

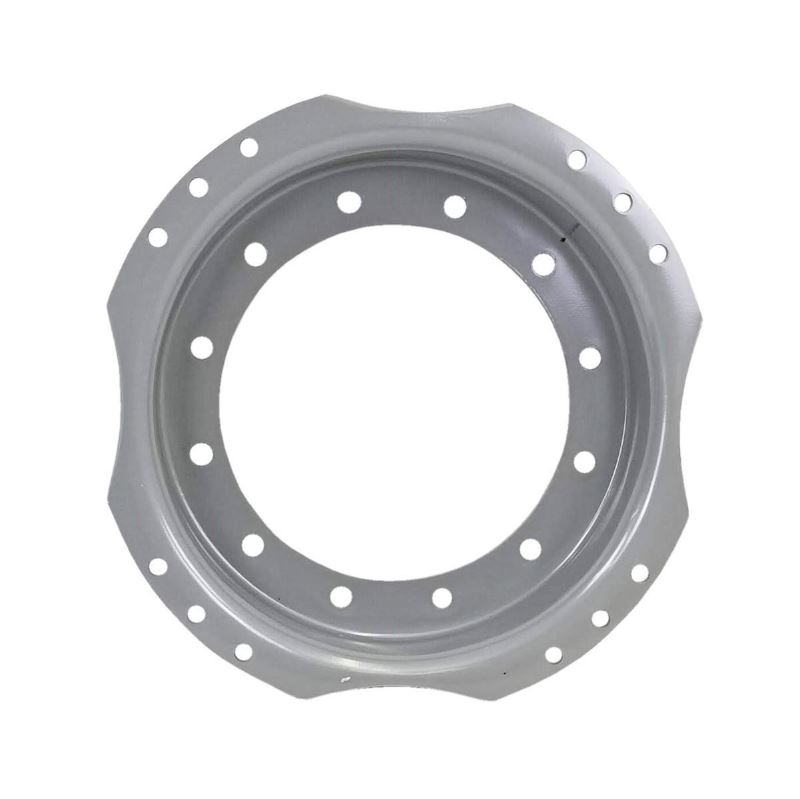

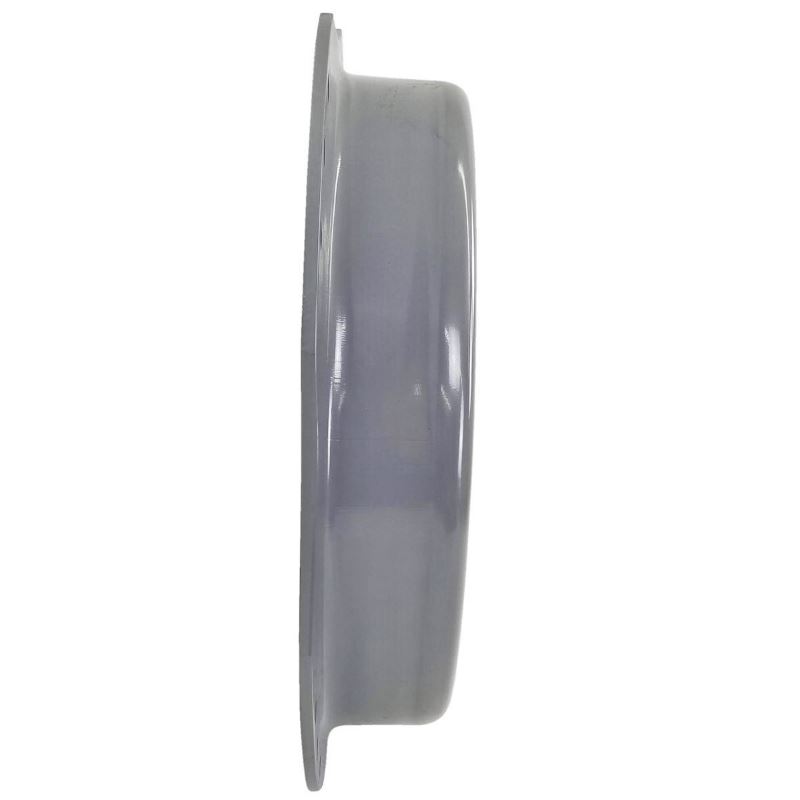

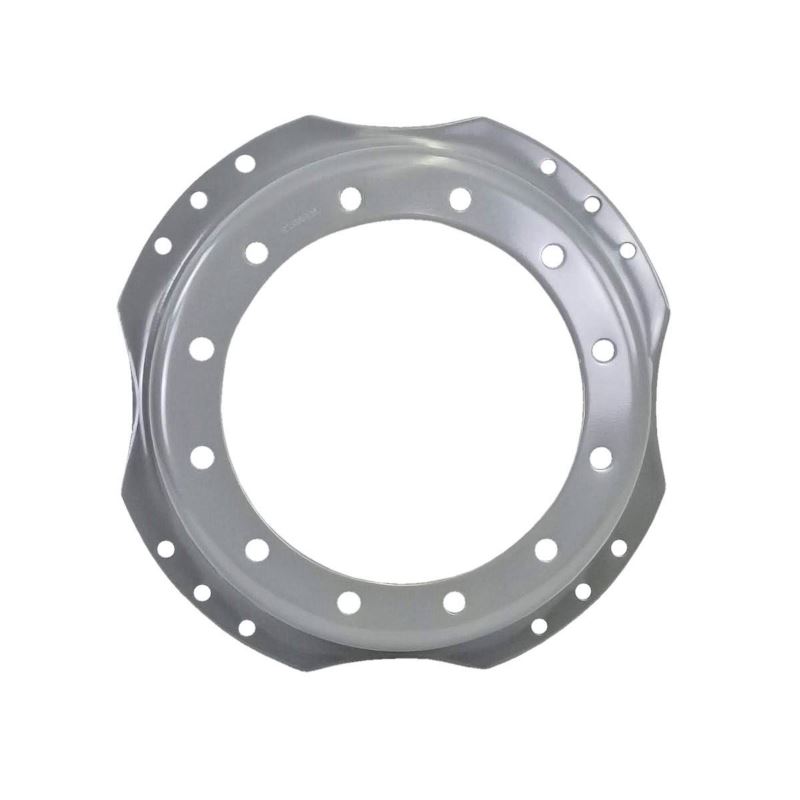

12 Hole Front Wheel Assist - 28/30 Waffle Center Disc - Agco Gray

  • Fits AGCO tractor models DT200, DT205B, DT220A, DT225, DT225B, DT240A, DT250B, DT275B with 12 hole front wheels
  • Fits AGCO Challenger tractor models MT645C, MT655, MT655C, MT665, MT665C, MT675C, MT675D with 12 hole front wheels
  • Fits Fendt tractor models 920, 922, 924, 926, 927, 930, 933, 936 with 12 hole front wheels
  • Fits Massey Ferguson tractor models 8270, 8280, 8470, 8480, 8650, 8660, 8670, 8680, 8727, 8730, 8732, 8735, 8737 with 12 hole front wheel
  • Fits AGCO Allis tractor models 9670, 9675, 9690, 9695, 9815
  • Powder coated finish
  • Made in the USA

SKU: 20-2881254-AG

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 28/30"
Pilot Hole 14-5/8"
Condition New
Color Agco Gray
Inner # Bolt Holes 12
Inner Bolt Circle 16-3/4"
Inner Bolt Hole Size 7/8"
Offset Measurement 4"
Outer # Bolt Holes 4 groups of 3 holes
Outer Bolt Circle 23-1/4"
Outer Bolt Hole Size 11/16"
Approximate Weight 48 lbs.
Countersink No
Outer Bolt to Bolt Measurement 4-13/16" 2-3/8"
Center Style 3/8" Formed
