8 Hole Front Wheel Assist 24

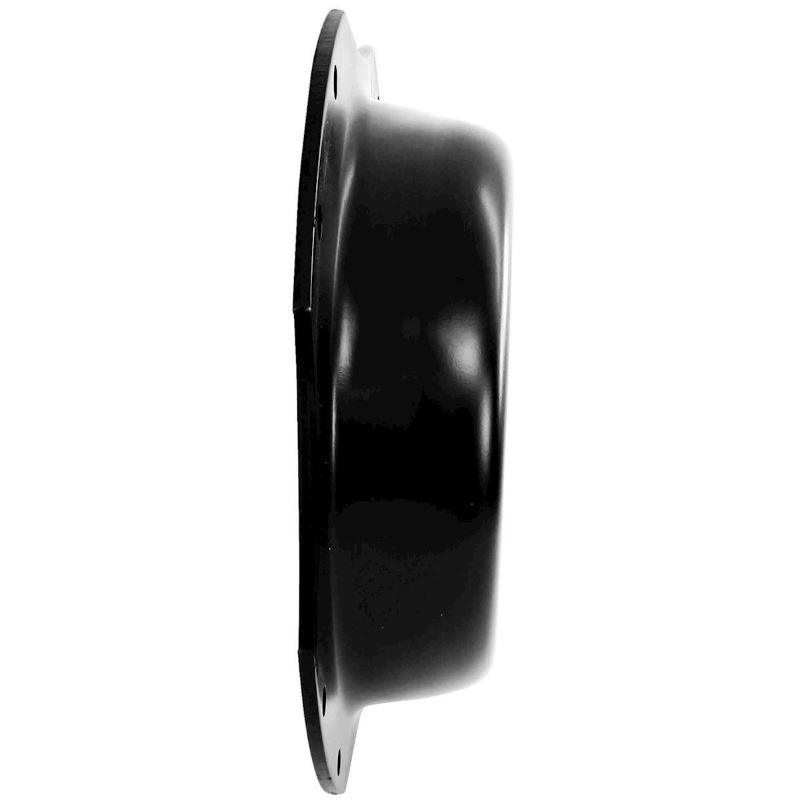

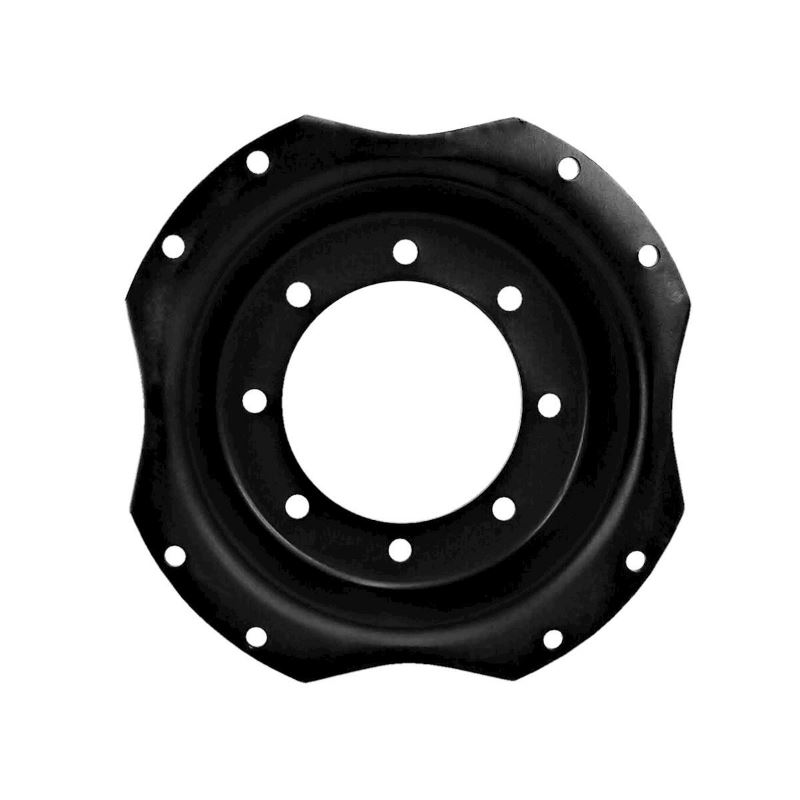

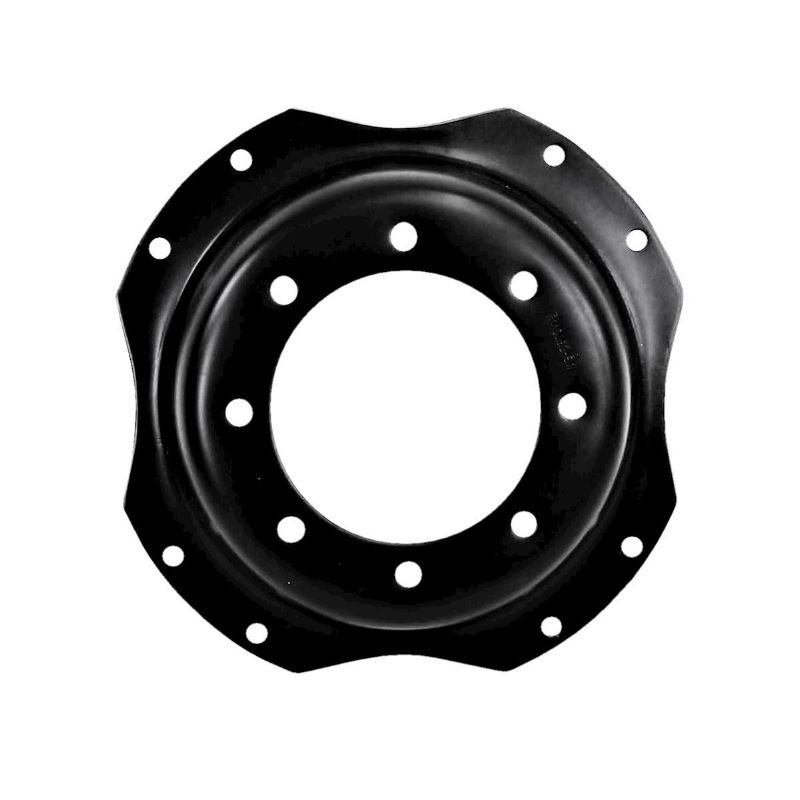

8 Hole Front Wheel Assist 24" Waffle Center Disc - Flat Black

  • Fits Case IH tractor models MX100, MX110,  MX120, MX135
  • Powder coated finish
  • Made in the USA

See list of compatible tire sizes below

SKU: 20-2480844FB

Quantity Pricing

Message or call 641-450-7090 for availability

Estimate Shipping

Estimate only. Rate to be determined on final checkout screen.

ALASKA and HAWAII Residents - Please contact us for a freight quote prior to purchase. Call 641-450-7090 or submit an inquiry through our Custom Inquiry Form.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 24"
Bolt Circle 10.75" (10-3/4")
Condition New
Color Flat Black
Number of Bolt Holes 8
Approximate Weight 36 lbs.
Outer Bolt to Bolt Measurement 4"
Countersink No
Center Style 3/8" Formed
Bolt Hole Size 0.8125" (13/16")
Offset Measurement 4"
Outer # of Bolt Holes 4 Groups of 2 Holes
Outer Bolt Circle 19.25" (19-1/4")
Pilot Hole 8.75" (8-3/4")
