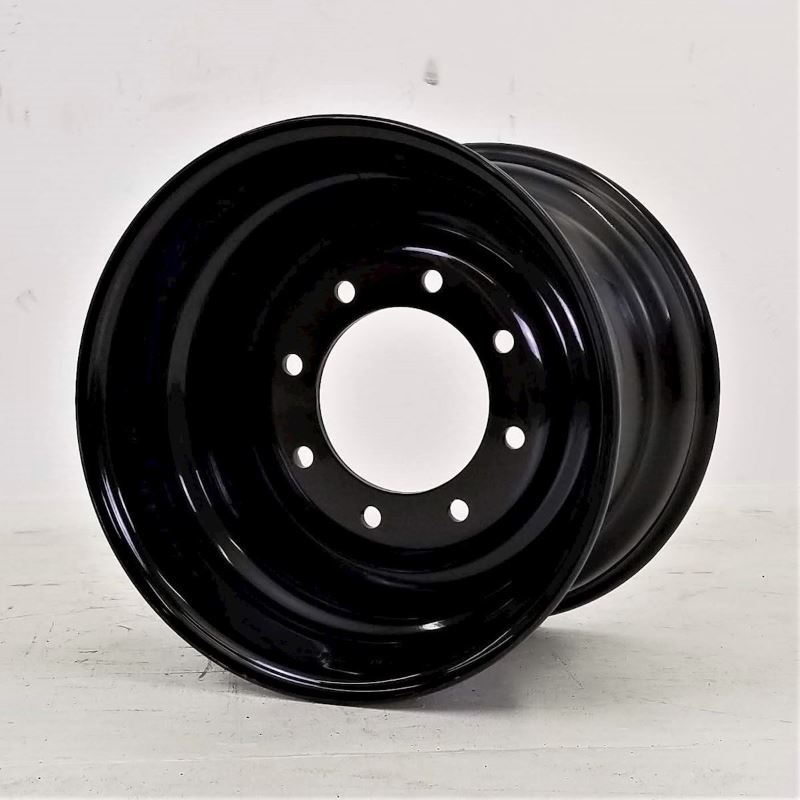

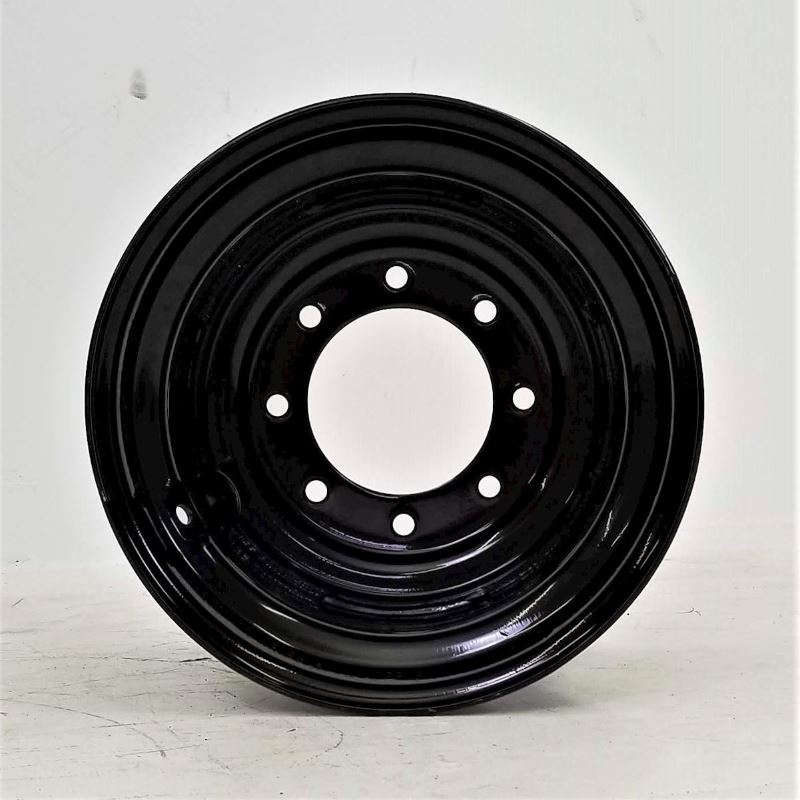

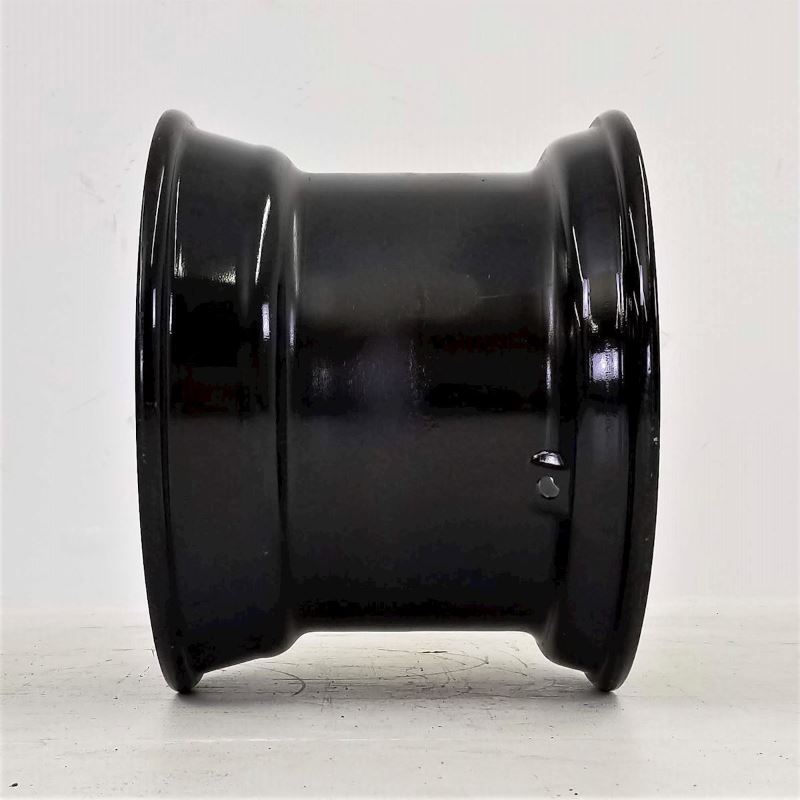

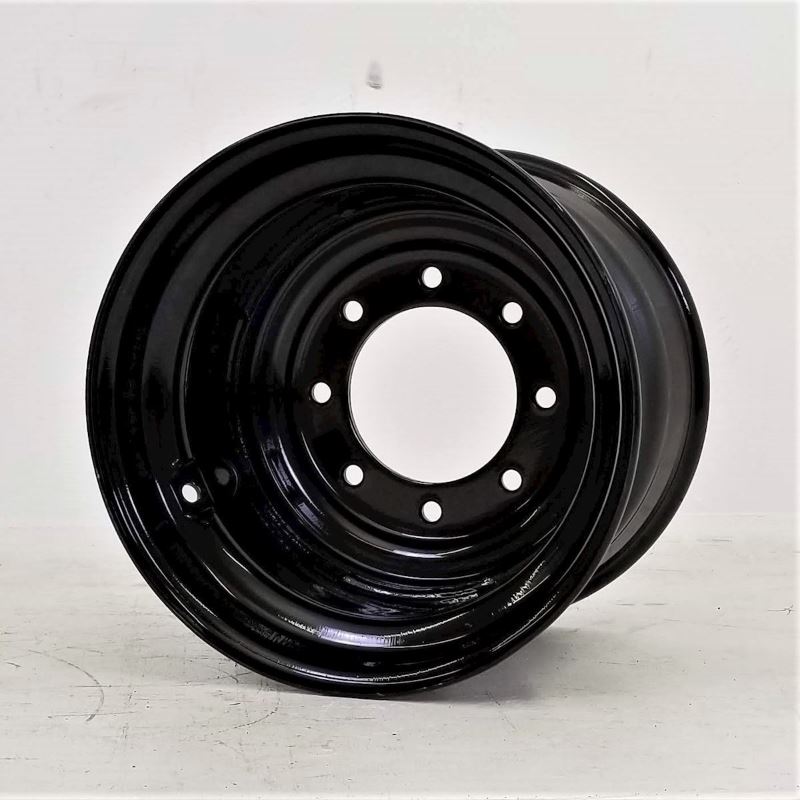

12x16.5 8 Hole Ag HD Implement Wheel 5-1/4" Backside V/G - Gloss Black

  • Powder coated finish
  • Made in the USA

Need Help Measuring a Wheel? Click Here!

See list of compatible tire sizes below

SKU: 04-5508552V-GB

Quantity Pricing

Message or call 641-450-7090 for availability

Estimate Shipping

Estimate only. Rate to be determined on final checkout screen.

ALASKA and HAWAII Residents - Please contact us for a freight quote prior to purchase. Call 641-450-7090 or submit an inquiry through our Custom Inquiry Form.

Product Details

As a replacement wheel, the original manufacturer, name and part numbers are to be used for reference only.


Rim Diameter 16.5"
Rim Width 12"
Bolt Circle 8"
Backside Measurement 5-1/4"
Frontside Measurement 7-3/4"
Condition New
Color Gloss Black
Number of Bolt Holes 8
Approximate Weight 56 lbs.
Countersink 90°
Center Style 3/8" Formed
Rim Thickness .224"
Bolt Hole Size 0.6875" (11/16")
Offset Measurement 1.50" Outset/Negative
Pilot Hole 6.030" (6-1/16")
Valve Guard Yes

Tire Sizes

Width Aspect Ratio Wheel Diameter
31 15.5 16.5
33 15.5 16.5
33 14.5 16.5
380 55R 16.5
