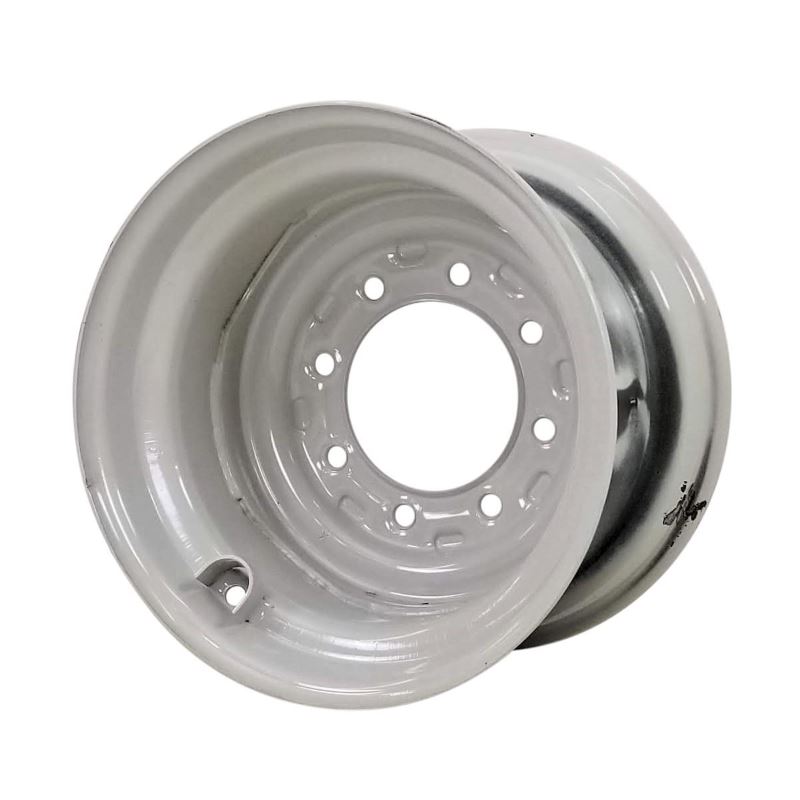

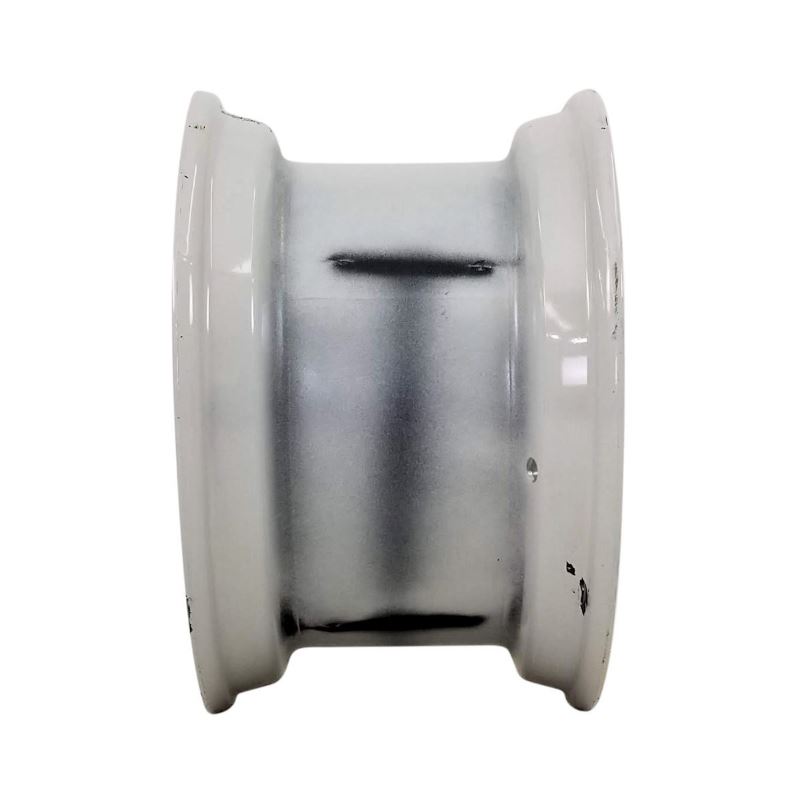

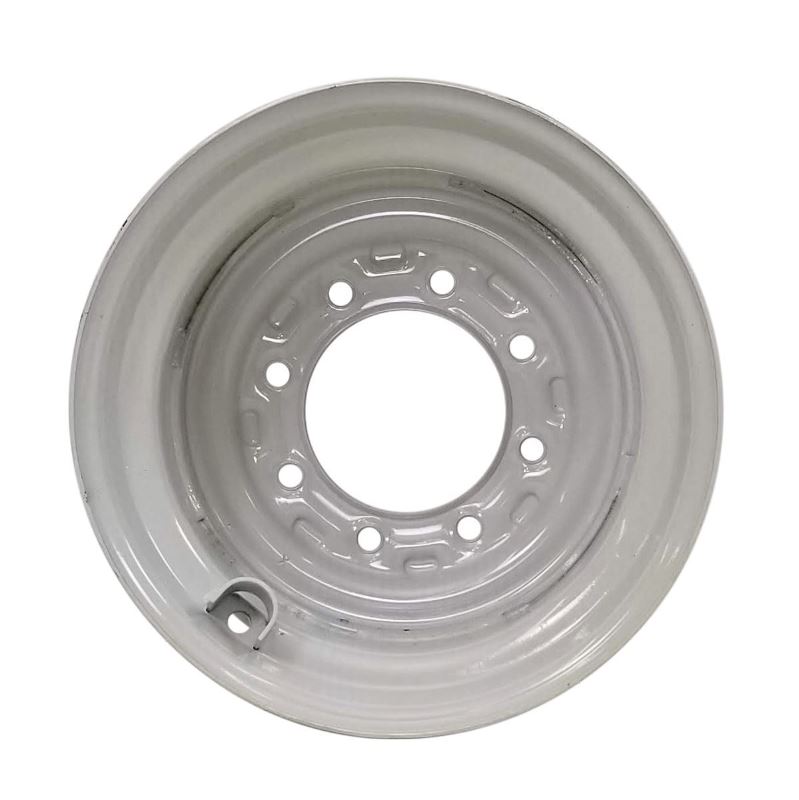

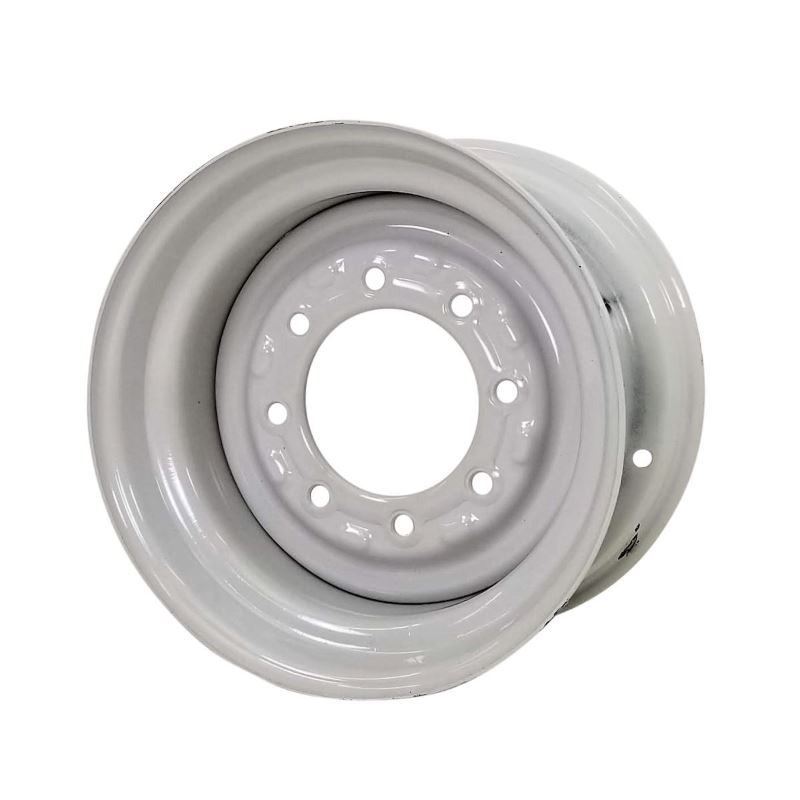

9.75x16.5 8 Hole Skid Steer Wheel 3-3/4" Backside V/G - Light Gray

  • Powder coated finish
  • Made in the USA

Need Help Measuring a Wheel? Click Here!

See list of compatible tire sizes below

SKU: 04-5308537V-LG

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping

Estimate only. Rate to be determined on final checkout screen.

ALASKA and HAWAII Residents - Please contact us for a freight quote prior to purchase. Call 641-450-7090 or submit an inquiry through our Custom Inquiry Form.

Product Details

As a replacement wheel, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 16.5"
Rim Width 9.75"
Bolt Circle 8"
Backside Measurement 3-3/4"
Frontside Measurement 6-7/8"
Condition New
Color Gray
Number of Bolt Holes 8
Approximate Weight 38 lbs.
Center Style Pressed
Countersink 90°
Bolt Hole Size 0.6875" (11/16")
Offset Measurement 1.937" Outset/Negative
Pilot Hole 6"
Valve Guard Yes

Tire Sizes

Width Aspect Ratio Wheel Diameter
12 - 16.5
30.5 12.5 16.5
33 12.5 16.5
35 12 16.5
36 12.5 16.5
