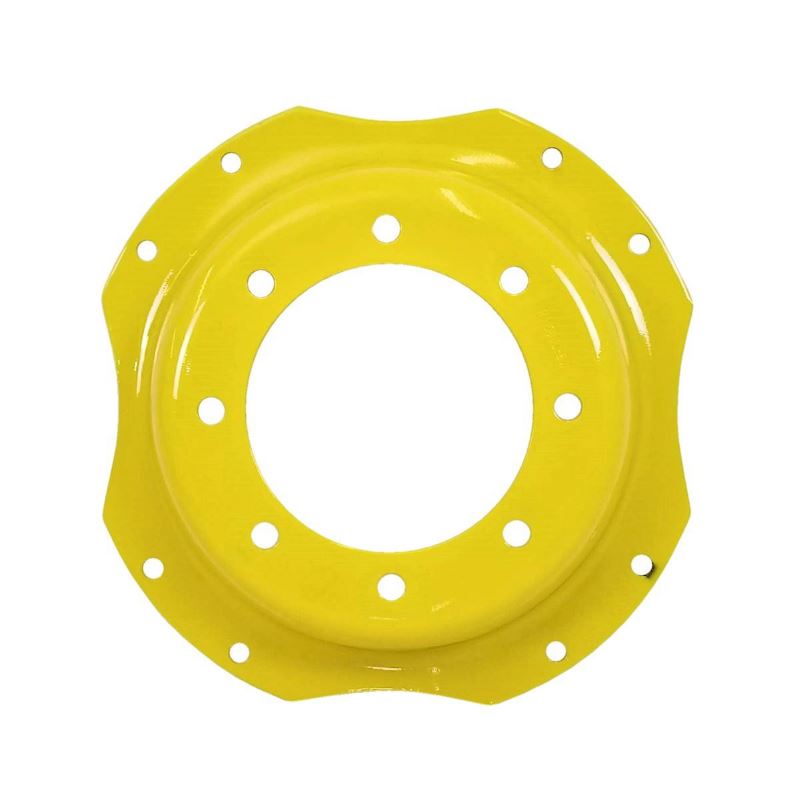

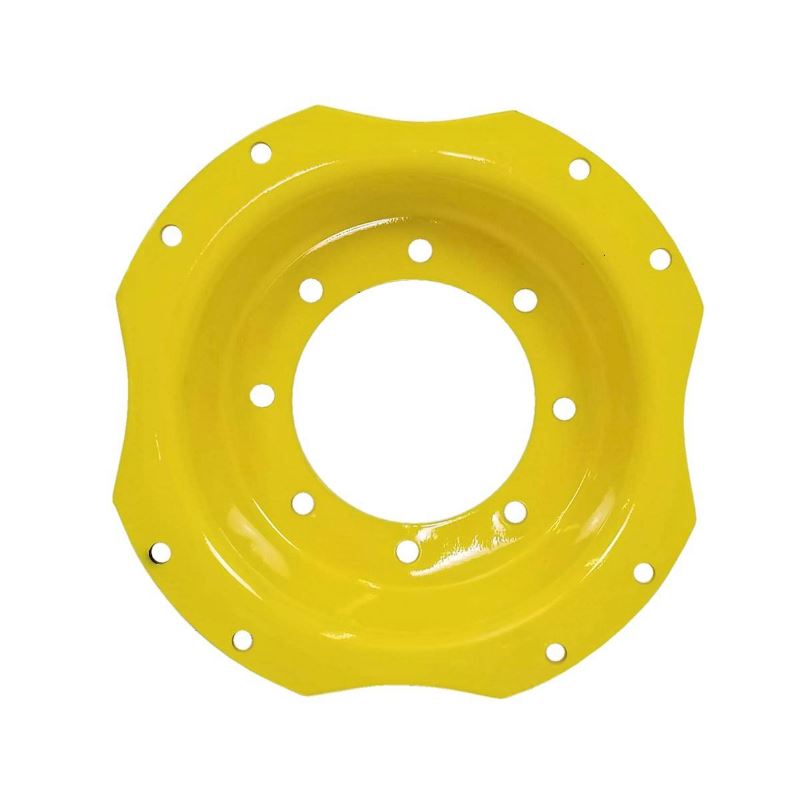

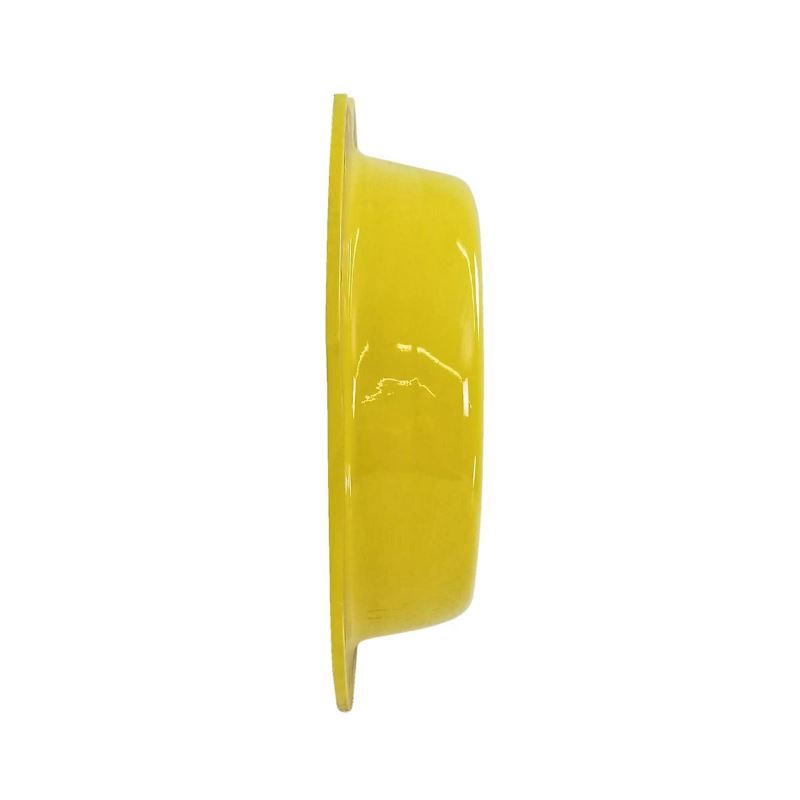

8 Hole Front Wheel Assist - 24" Waffle Center Disc - JD Yellow

  • Fits John Deere tractor models 2750, 2755, 2850, 5083, 5085, 5095, 5325, 5410, 5420, 5520, 5625, 6200, 6210, 6220, 6230, 6300
  • Powder coated finish
  • Made in the USA

SKU: 20-2480844-JY

Quantity Pricing


Message or call 641-450-7090 for availability


Estimate Shipping
Estimate only. Rate to be determined on final checkout screen.

Product Details

As a replacement center, the original manufacturer, name and part numbers are to be used for reference only.

Specifications

Rim Diameter 24"
Pilot Hole 8-3/4"
Condition New
Color JD Yellow
Inner # Bolt Holes 8
Inner Bolt Circle 10-3/4"
Inner Bolt Hole Size 13/16"
Offset Measurement 4"
Outer # Bolt Holes 4 groups of 2 holes
Outer Bolt Circle 19-1/4"
Outer Bolt Hole Size 11/16"
Approximate Weight 36 lbs.
Outer Bolt to Bolt Measurement 4"
Countersink No
Center Style 3/8" Formed
